Status: In Stock

Kode Barang : SKU04210669

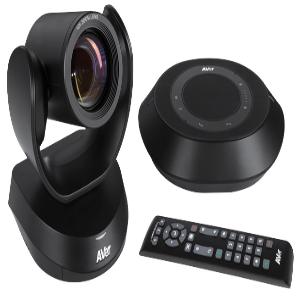

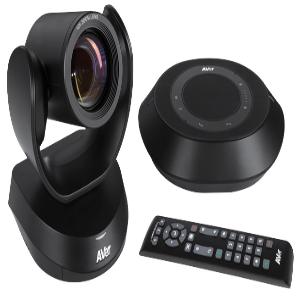

Spesifikasi :  2 USB 3.1 Type-B 3 RS232 in/out 4 LAN for IP streaming/remote access 5 DC 12V Specifications Camera Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps SmartFrame for automatic FOV adjustment to fit all participants Smart Gallery* function offers great visibility for individual participant in the meeting room Innovative Preset Framing: Follow presenter based on preset areas True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions Zoom: 24X* total zoom (12X optical zoom) Field of view(D/H/V): 84.5°/76°/48° Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele) Lens F#: 1.8 (wide) ~ 2.8 (tele) Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2 Minimum focus distance: 1.5 m Standard tripod screw holes and Kensington slot People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage *Please use PTZApp 2 to set up Smart Gallery and 24X zoom. Motorized Pan & Tilt Movement Pan: ±170° Tilt: +90° (up) -30° (down) 10 camera presets (via remote control) Fast and quiet pan & tilt movement Video Format YUV, YUY2, MJPEG, NV12 Network video compression format: H.264 Network protocols: RTSP, RTMP Speakerphone Full duplex microphone array with echo cancellation Advanced noise suppression Dual-omnidirectional microphone array 3.5 mm phone-in jack 3.5 mm line out Speaker: 6W, Adjustable to 90dB SPL at 0.5 m Touch controls for volume down/up, mute, phone input (Microsoft Teams SKU w/o this function), call, hang-up, and, Teams button* Bridge phone-in and USB into one call Security: Kensington slot *Only available for the VC520 Pro2 Microsoft Teams edition Audio Format AAC-LC Network protocol: RTSP, RTMP Connectivity 12V/5A power adaptor Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain) USB 3.1 Type-B connector IP (RJ45) Environmental Data Operation temperature: 0°C ~ 40°C Operation humidity: 20% ~ 80% Storage temperature: -20°C ~ 60°C Storage humidity: 20% ~ 80% Dimensions Package dimensions: 259 x 259 x 349 mm* Package weight: 5.4 kg* Camera: 142.7 x 153 x 182 mm/1.45 kg Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg Remote control: 200 x 50 x 21 mm/0.09 kg * VC520 Pro2 Microsoft Teams edition Package dimensions: 348 x 251 x 308 mm Package weight: 6.7kg Package Contents VC520 Pro2 Camera VC520 Pro Speakerphone Remote control Power adapter Power cord (6 ft/1.8 m) USB2.0 type-B to type-A cable (16.5 ft/5 m) Camera to Speakerphone Cable (33ft/ 10m) 3.5 mm aux cable (3 ft/0.9 m) QR code card Wall-mount bracket ¼" tripod screw 2 Expansion microphone and 5 m Cable* *Only available for the VC520 Pro2 Microsoft Teams edition USB 3.1 Gen 1 Type-B, backward compatible with USB 2.0 UVC (USB video class) 1.1 UAC (USB audio class) 1.0 UVC1.5* *UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details. Control IR remote control VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command) Remote side: VISCA over IP, IP (RJ45) UVC/UAC plug-and-play WebUI: Browser IP access via Chrome (does not support Internet Explorer) PTZApp 2 Mount Camera wall-mount bracket included Optional foldable TV mount Optional ceiling mount System Requirements Windows® 7/10/11 Mac OS X 14.4 or higher Chromebox 3 version 94.0.4606.114 or later Hardware Specs 3.2 GHz Intel® Core™ i5-4460 Processor or higher 4 GB RAM or more USB 3.1 port, backward compatible with USB 2.0 port Web page browser requirement Chrome: version 76.x or above Firefox: version 69 or above IE: Not support Power Supply AC 100V ~ 240V, 50/60 Hz Consumption: 12V, 5A Free Applications for Meeting Collaboration (Windows® and Mac) EZManager 2: Camera Central Management software Remotely group FW/SW upgrades, control the camera, and configure settings PTZApp 2 Upgrade firmware automatically or manually Control camera Set parameters and adjust camera image Diagnose operating status View live video EZLive Real-time streaming / annotating / snapshots / video recording Optional Accessories Mini DIN8 to D-SUB9 RS232 adapter Expansion Speakerphone Expansion Microphone Foldable TV mount USB3.1 fiber extender 10m/20m/30m USB3.1 type-B to type-A cable 3m Ceiling mount Compatible Applications Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Vidyo, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, vMix, WebRTC, Wirecast, XSplit **Specifications may vary depending on countries and are subject to change without notice. * Specifications may vary depending on countries and are subject to change without notice.
